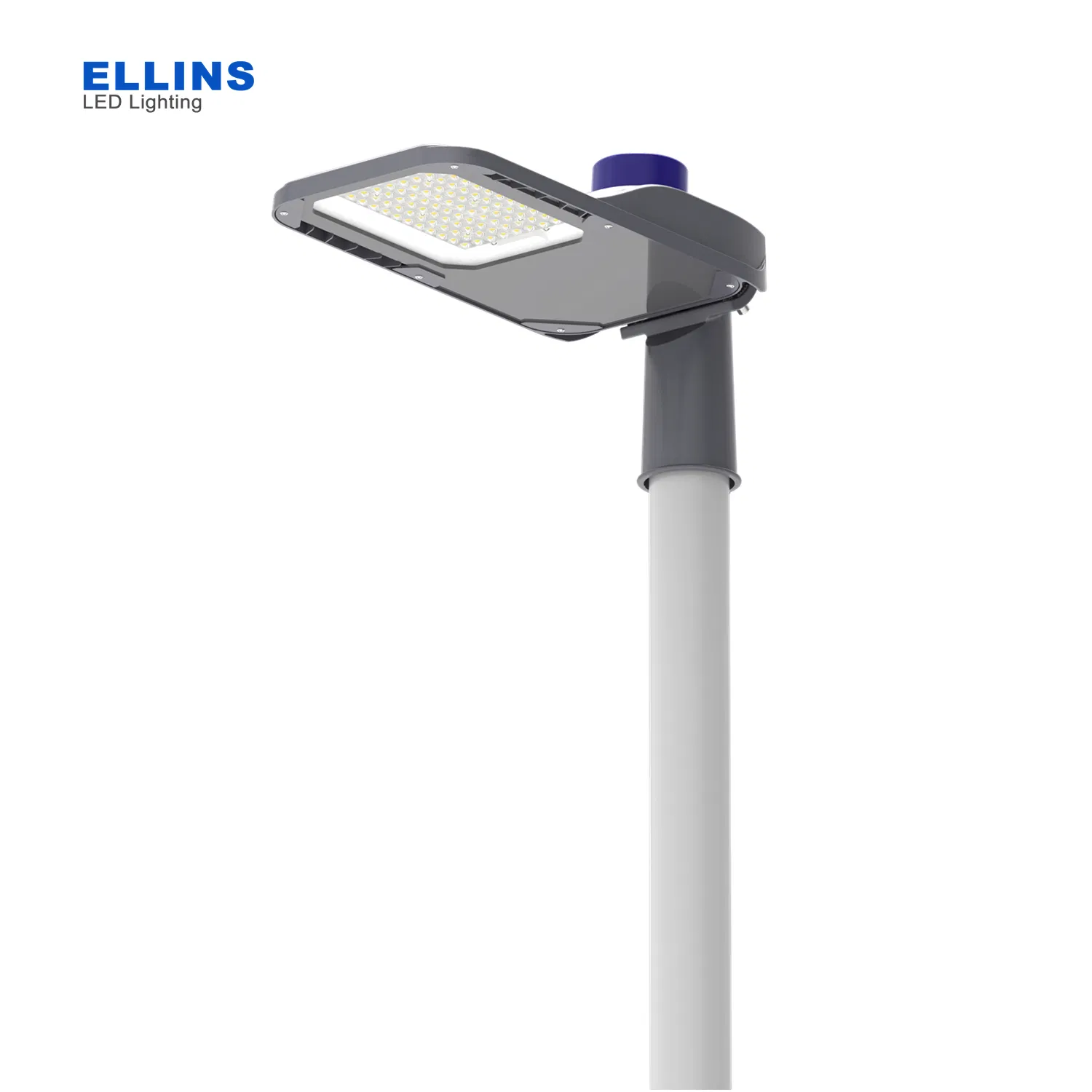

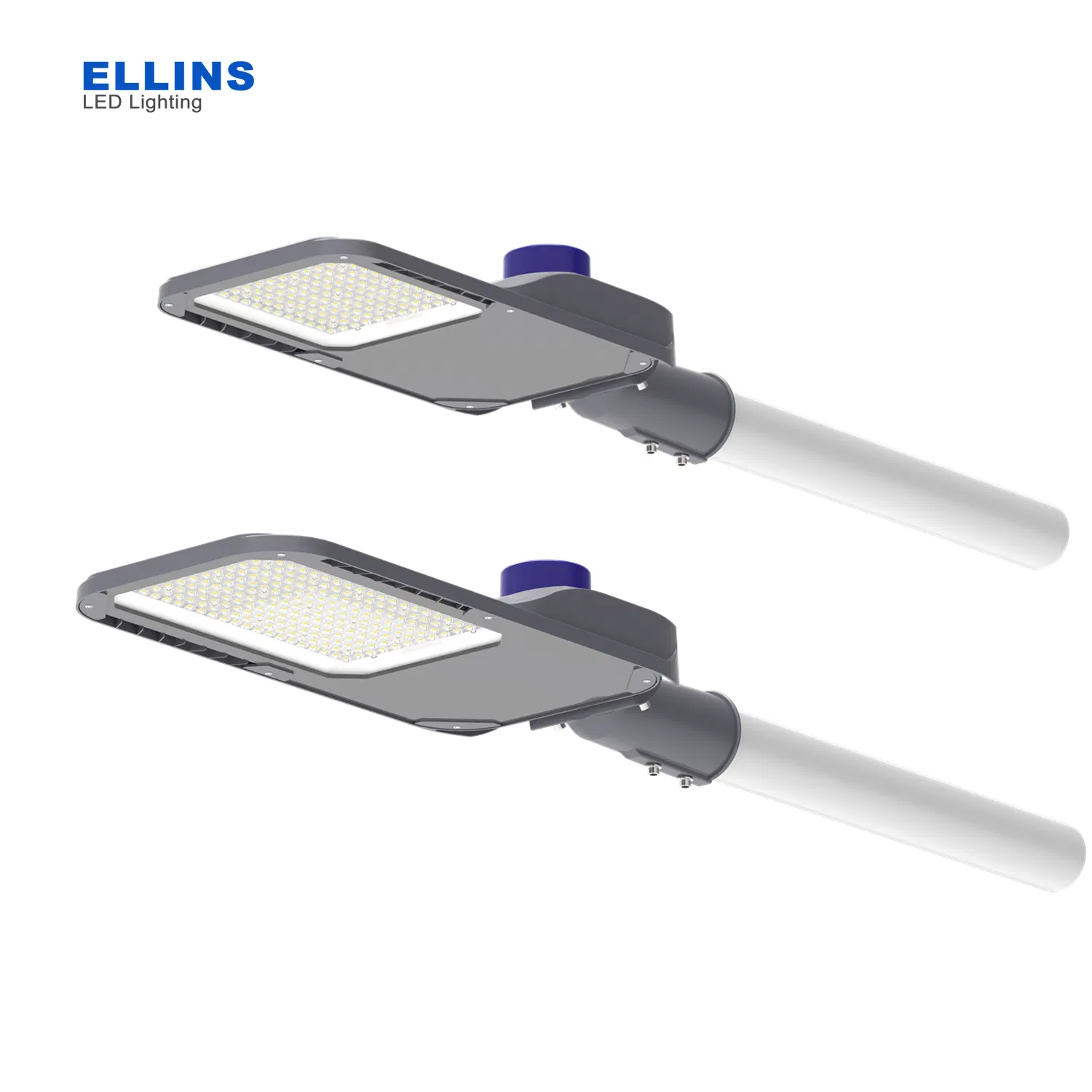

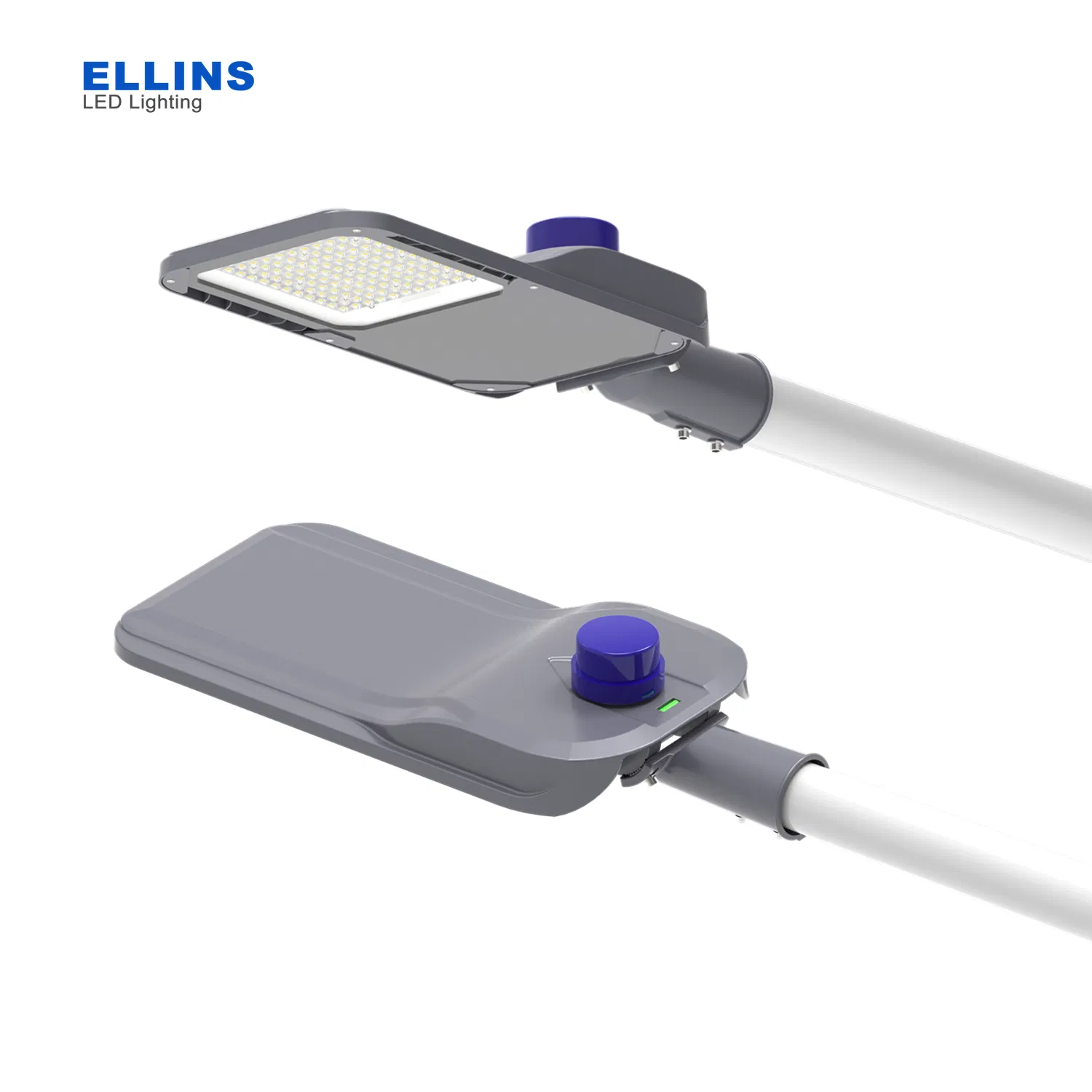

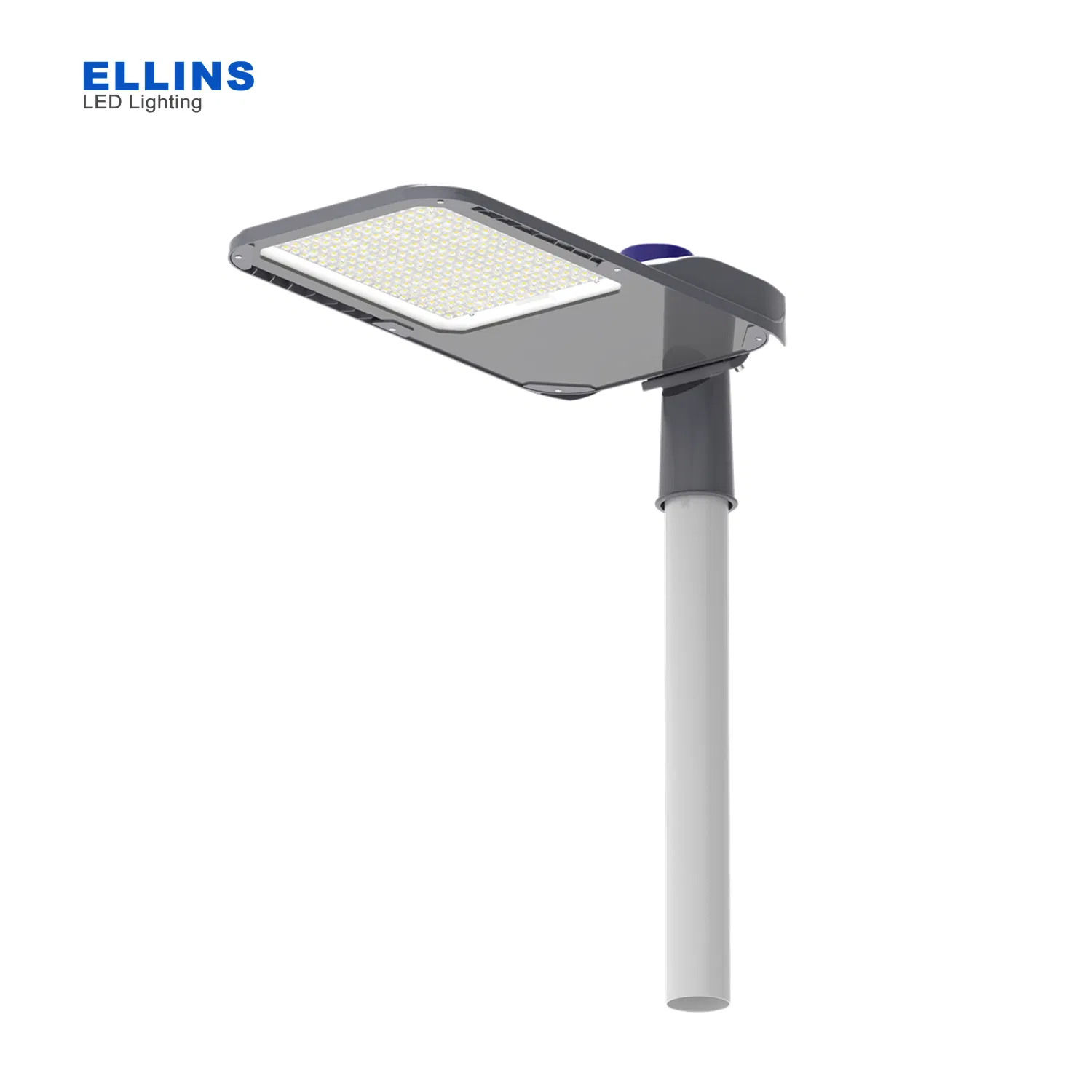

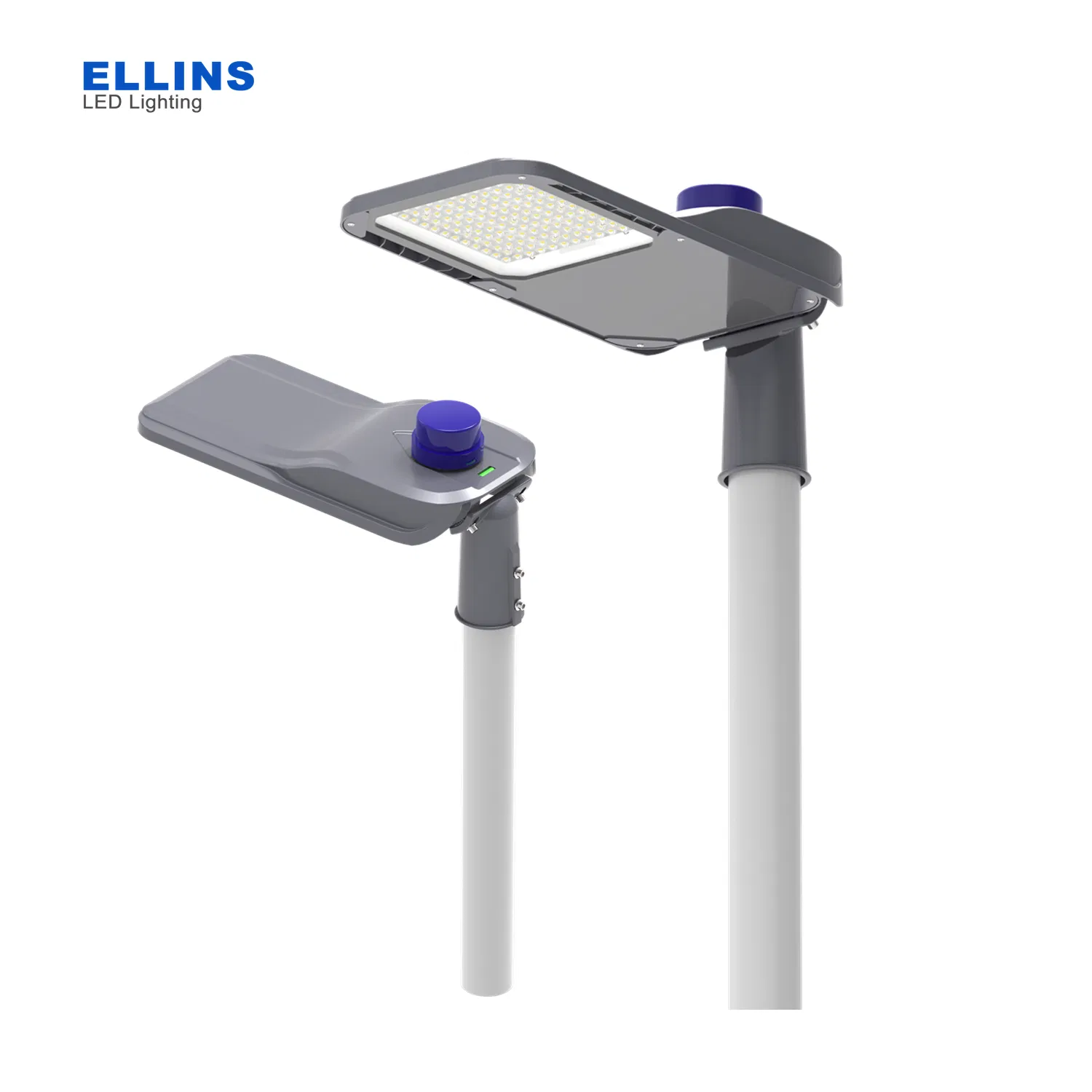

200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
1 / 5
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor
200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor

200 Watts IP66 Ik08 Rated 160lm/W LED Street Lights Roadway Lamps with Photocell Sensor

Customization: Available
Power Supply: AC
Color Temperature: 3000K 4000K 5000K 5700K 6500K
Send Inquiry

Product Description

Basic Specifications

Model NO.
ELS-ST14
Lamp Body
Aluminum
Power Range
50W - 240W
IP Rating
IP67 / IP66
LED Brand
CREE
Input Voltage
AC100-277V
Lifetime
>100,000 Hours
Warranty
5 / 10 Years

Product Description

Sleek and compact profile LED outdoor lighting landscape lighting street lamps

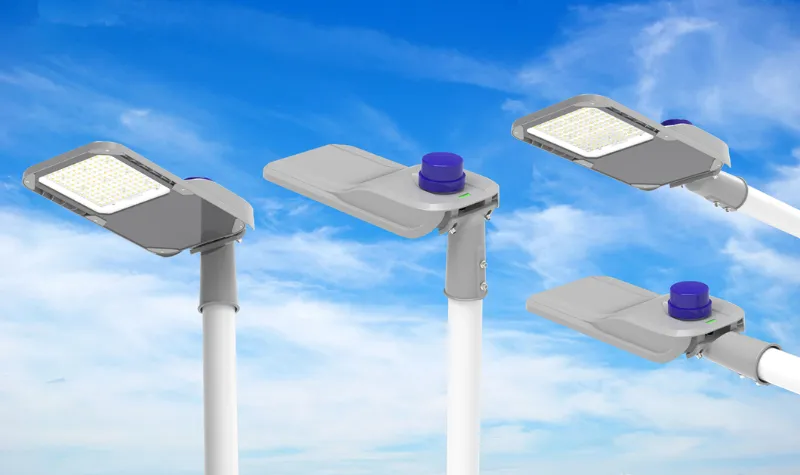

LED Street Light Overview

The ST14 series of luminaires have been developed to meet the needs of the most progressive smart cities. Designed specifically for lighting high traffic urban and suburban roads. The sleek, sculpted design fits perfectly with contemporary cityscapes, whilst offering unrivalled functionality, versatility and performance.

  • Slim and compact profile for maximum wind resistance
  • Circuit interrupter for maintenance access
  • Adjustable installation angle
  • IP66 for all weather conditions
  • IK10 Mechanical resistance

Technical Parameters

Power Options 50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W
Materials Die casting aluminum housing + PC lens + Tempered glass
CCT 3000K / 4000K / 5000K / 5700K / 6500K
LED Type SMD3030 (CREE Chips)
Driver Brand Meanwell / Inventronics
Protection IP66 / IK10
Dimming 1-10V / Dali / Timer Control

Detailed Photos

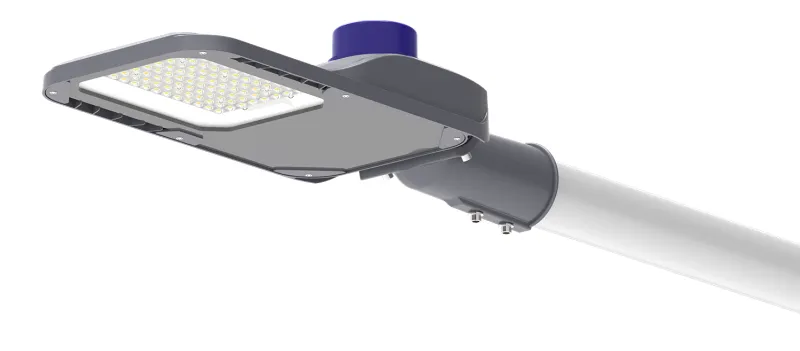

Detail 1

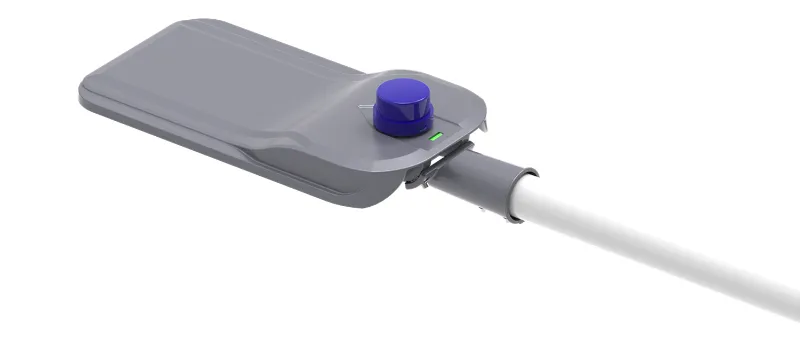

Detail 2

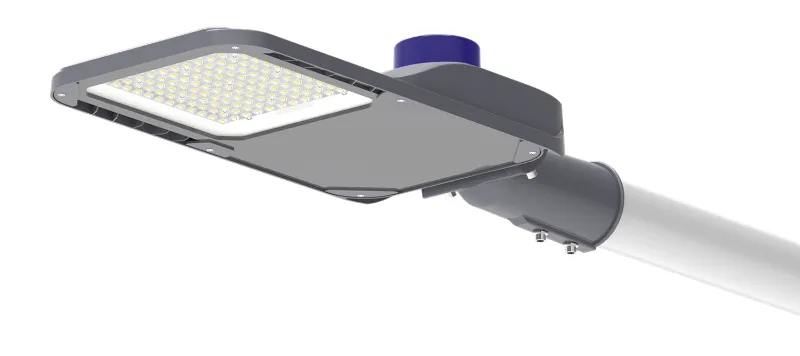

Detail 3

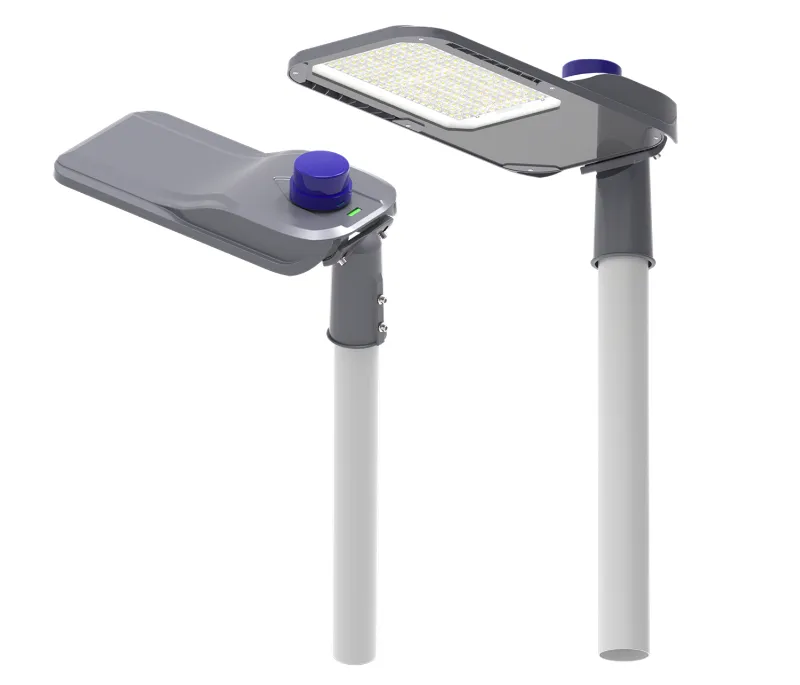

Detail 4

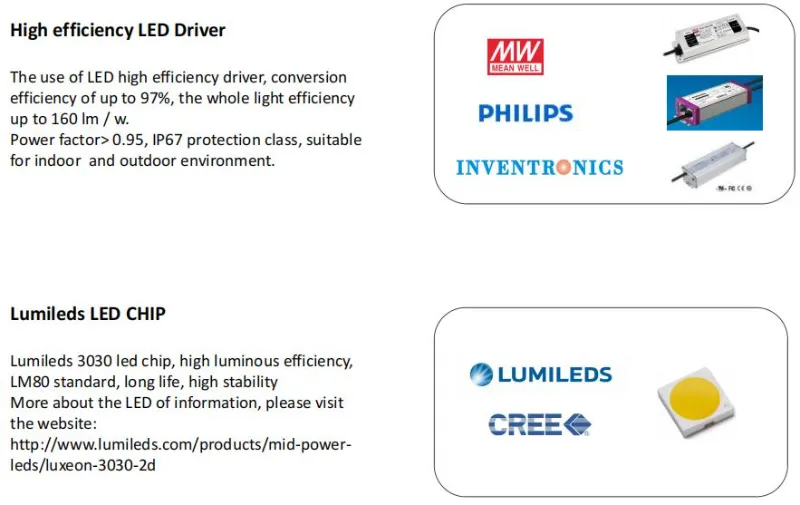

Detail 5

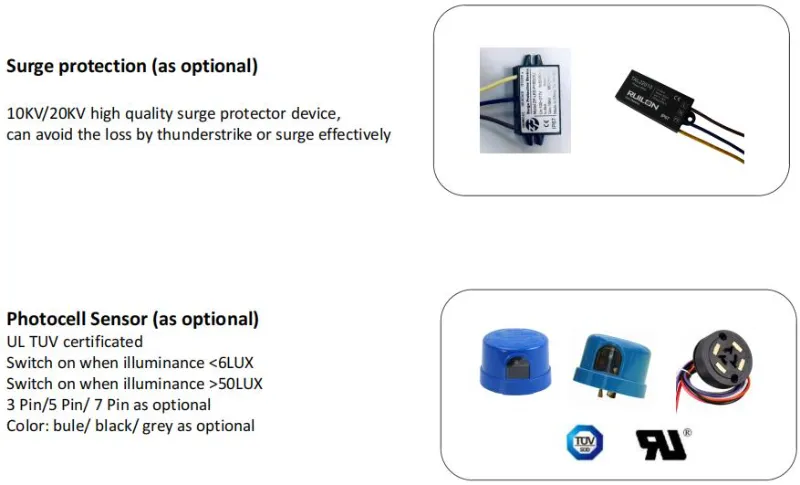

Detail 6

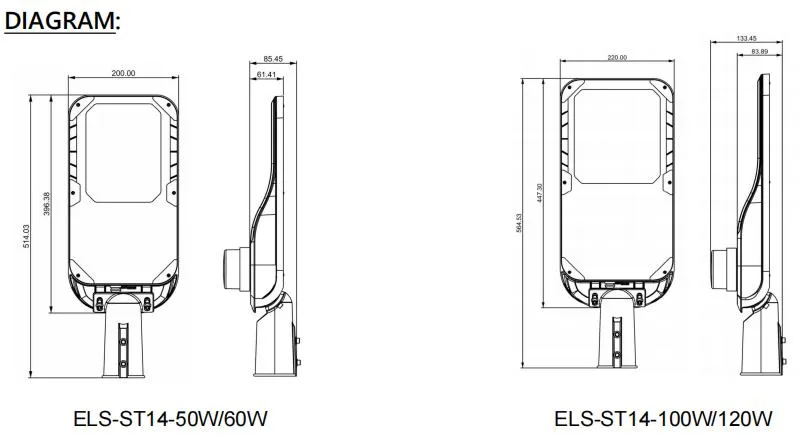

Detail 7

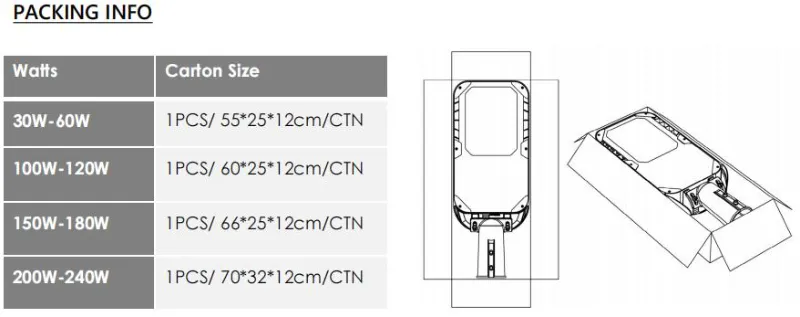

Detail 8

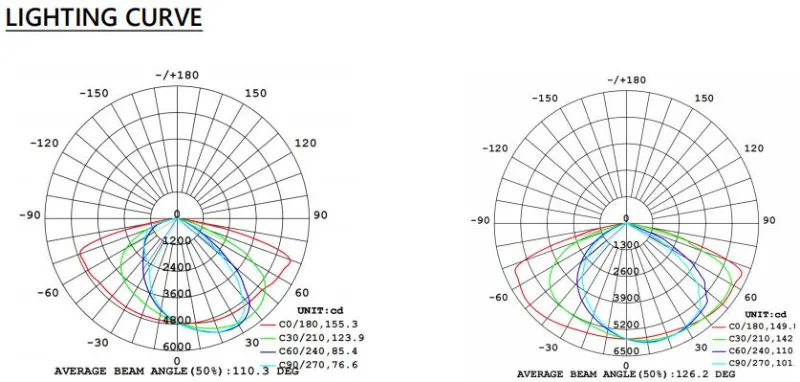

Detail 9

Application

Widely use for various applications, perfectly meet the demanding performance and lighting needs of roadway engineers, landscape architects and outdoor lighting professional.

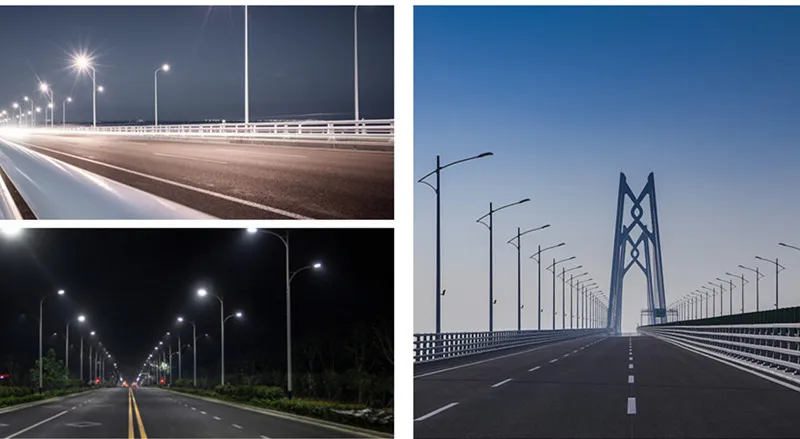

Street Light Application

Production & Certifications

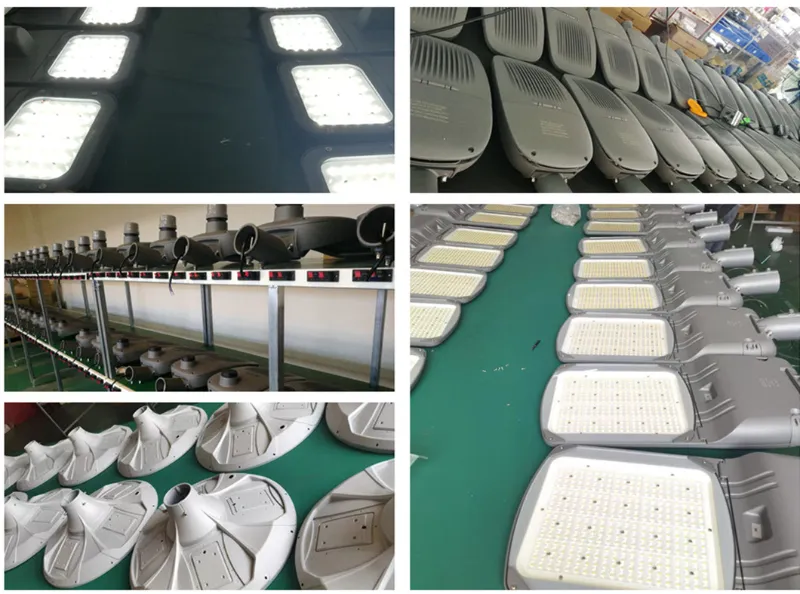

Production Line
Certification 1

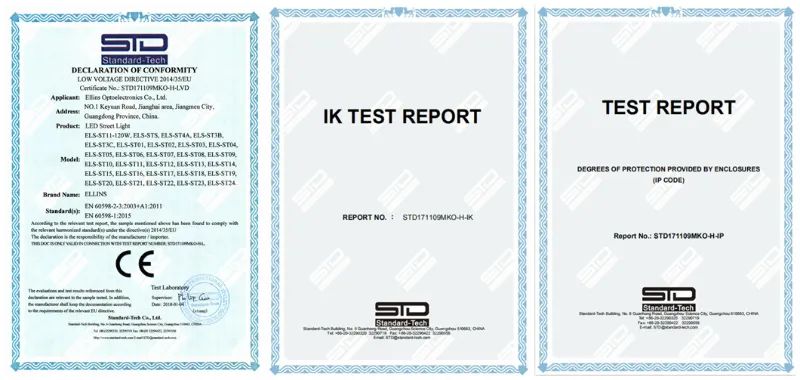

Certification 2

Manufacturing Capability

High-quality and high-performance LED lighting sources are utilized, primarily featuring CREE or other premium LED chips, all supported by LM-80 testing reports and > 160 LM/W luminous flux performance.

Reliable drivers from Meanwell and Inventronics are used, carrying CE, ROHS, TUV/CE, PSE, and SAA certifications.

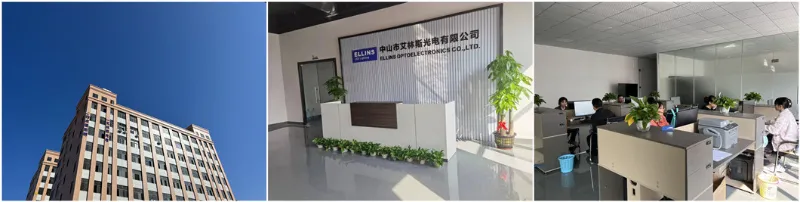

Capability Overview
Capability 1

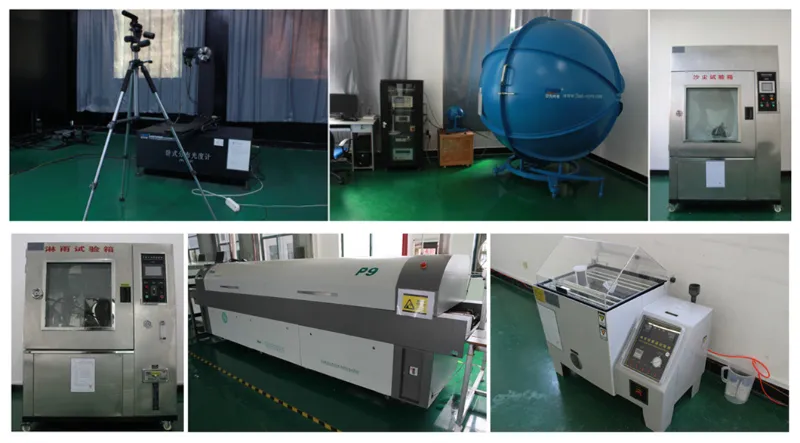

Capability 2

Frequently Asked Questions

What is the IP and IK rating for these street lights?
These street lights are rated IP66/IP67 for superior water and dust protection, and IK10 for high mechanical impact resistance.
Which LED chips and drivers are used?
We use high-performance CREE LED chips and reliable drivers from Meanwell or Inventronics to ensure long-term stability.
What is the expected lifespan of the product?
The LED street lights have a design lifetime of over 100,000 hours, significantly reducing maintenance costs.
Are dimming options available?
Yes, we support 1-10V dimming, DALI control systems, and Timer Control dimming for smart city applications.
What is the standard warranty period?
The products come with a standard limited warranty of 5 to 10 years depending on the specific configuration.
Can these lights withstand extreme weather?
Yes, they are designed with a slim profile for wind resistance and operate effectively in temperatures ranging from -30°C to +50°C.
