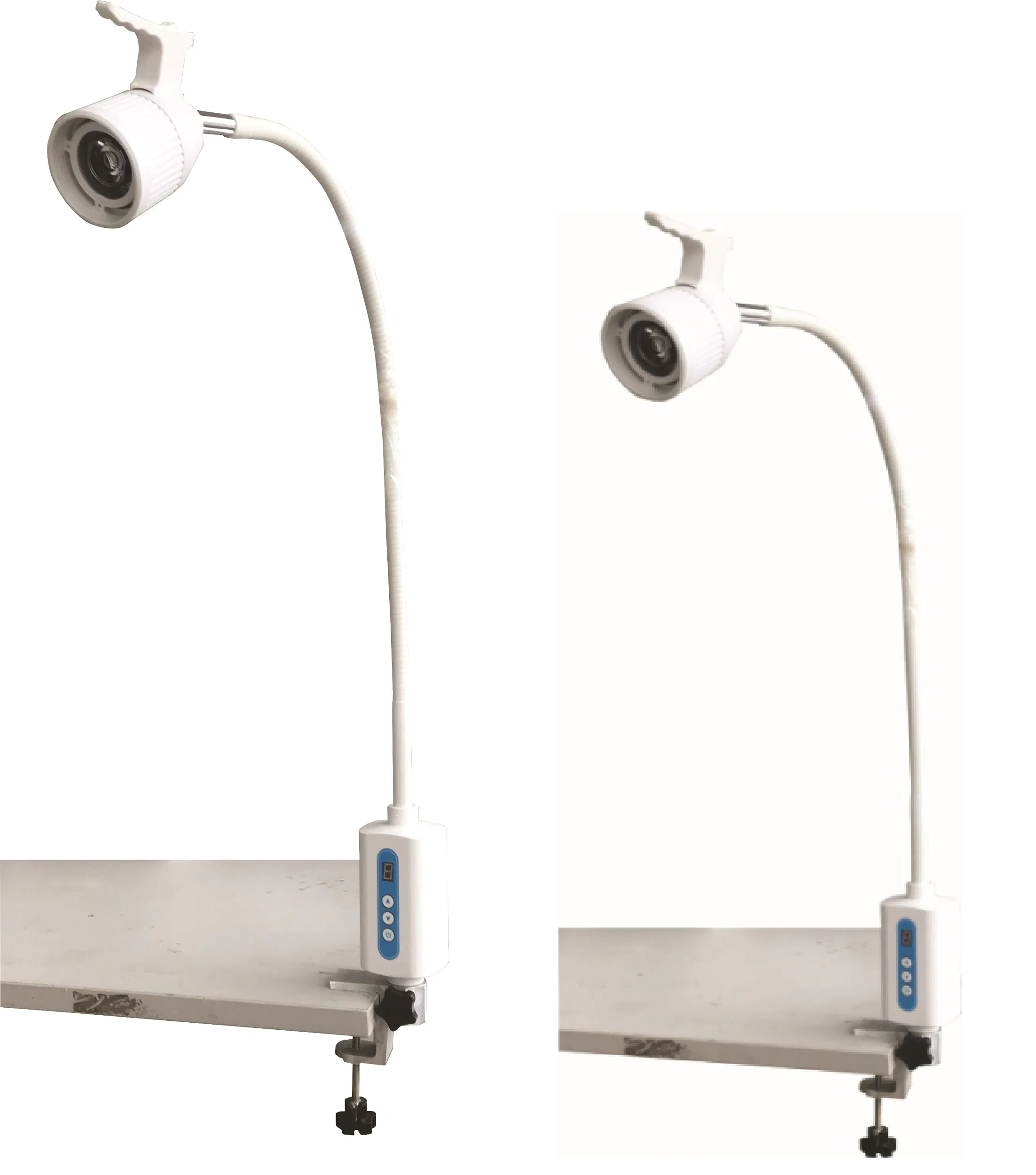

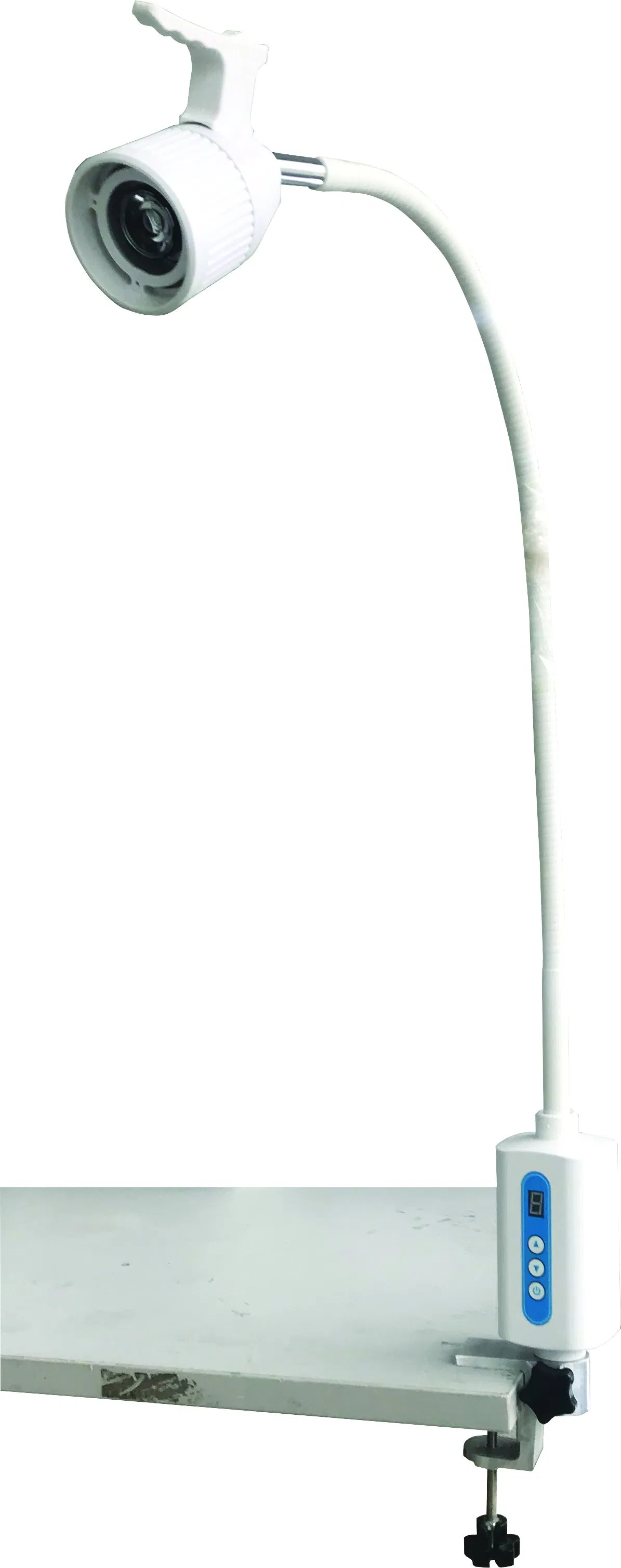

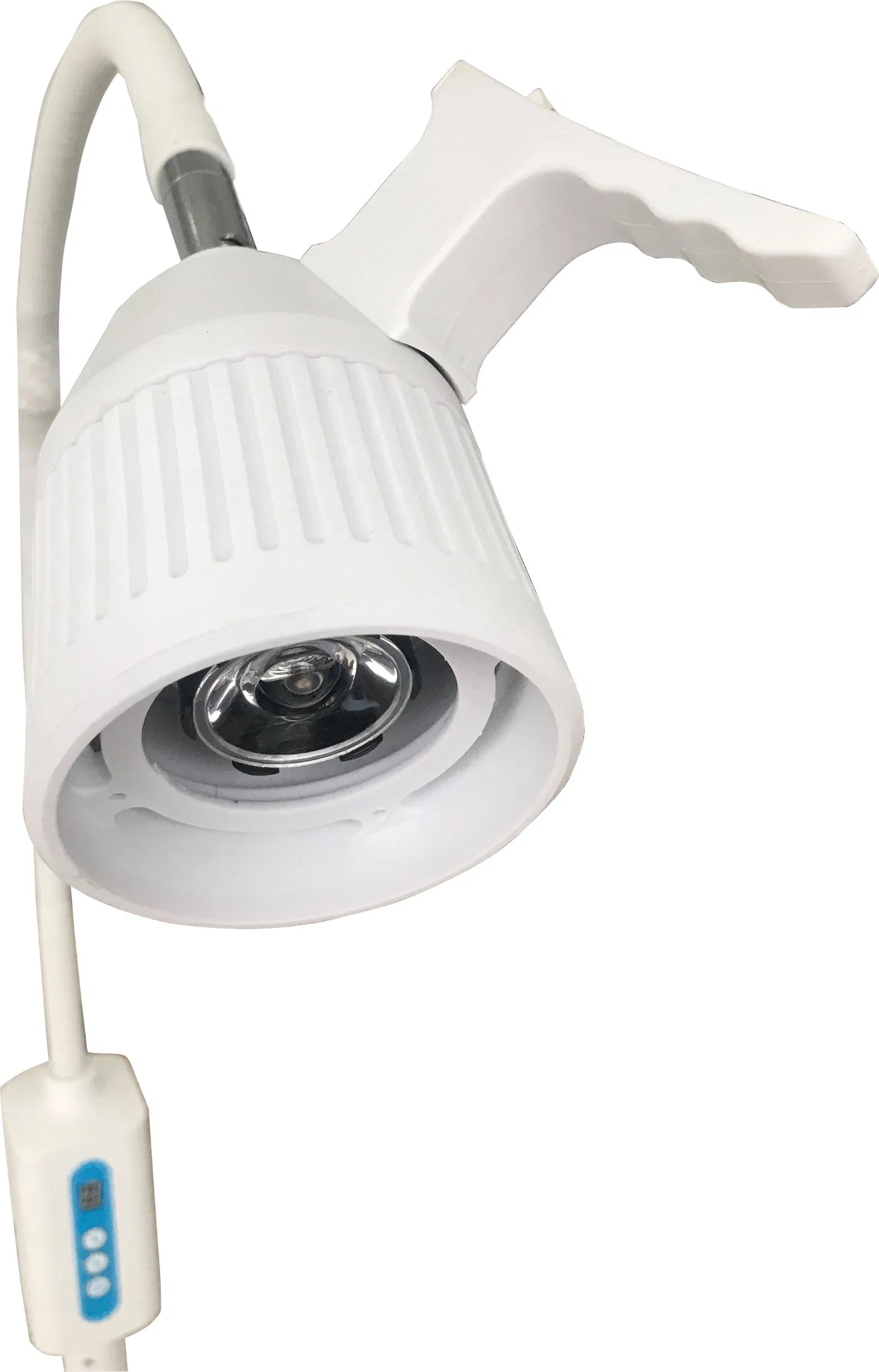

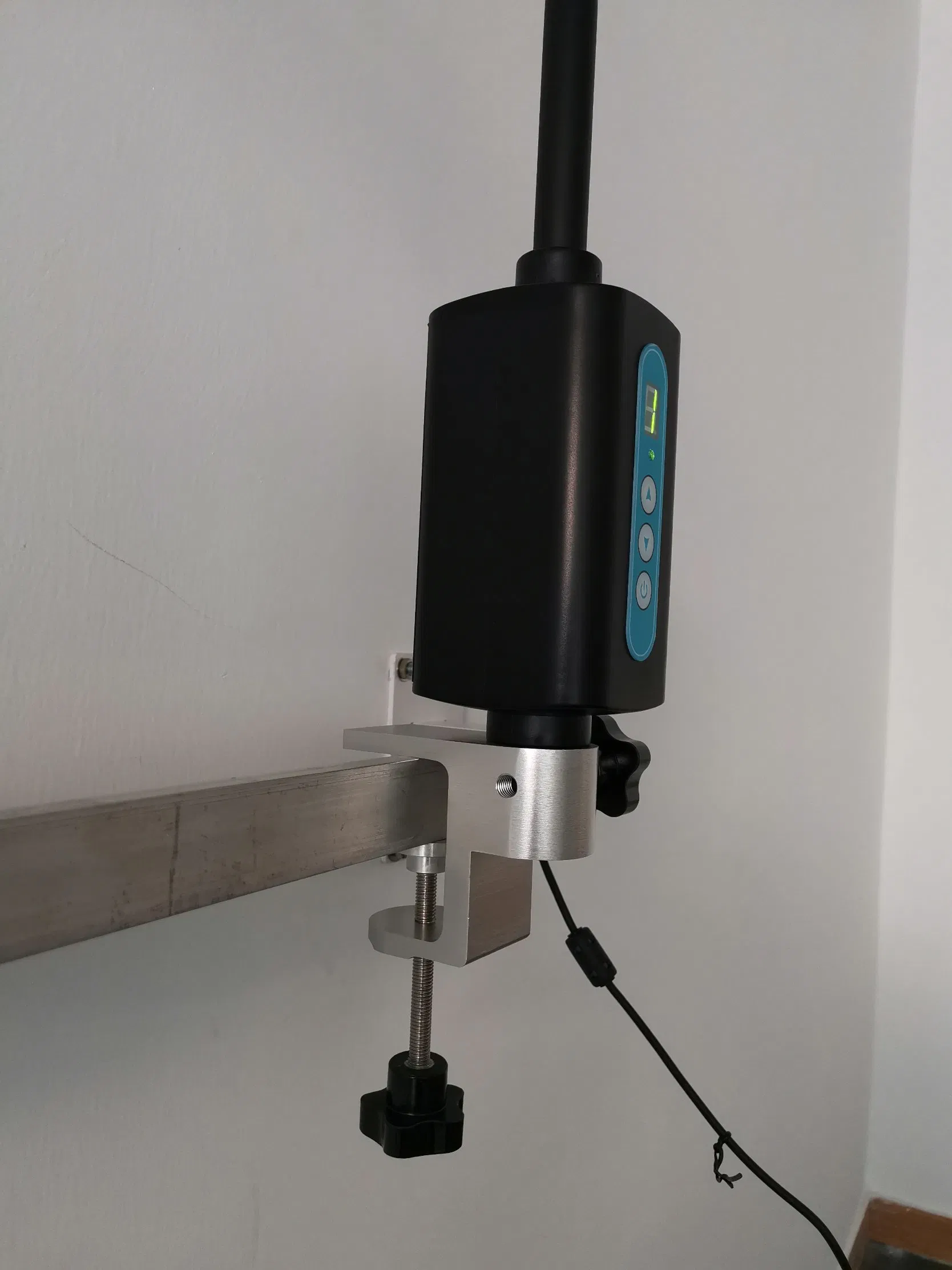

LED Examination Lamp Ks-Q3d Table Clamp Type for Gynecological, Medical

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
Ks-Q3d Table clamp
Color Temperature
6000K
CRI
75ra
Control Mode
Light Touch on Control Box
Light Field Diameter
40mm at D=30cm; 80mm at D=50cm
Extension of Arm
76cm Adjustable
Light Source
1 LED
LED Average Life
50000 Hours
Power Consumption
3W
Input Voltage
110V-265V 50/60Hz
Standard

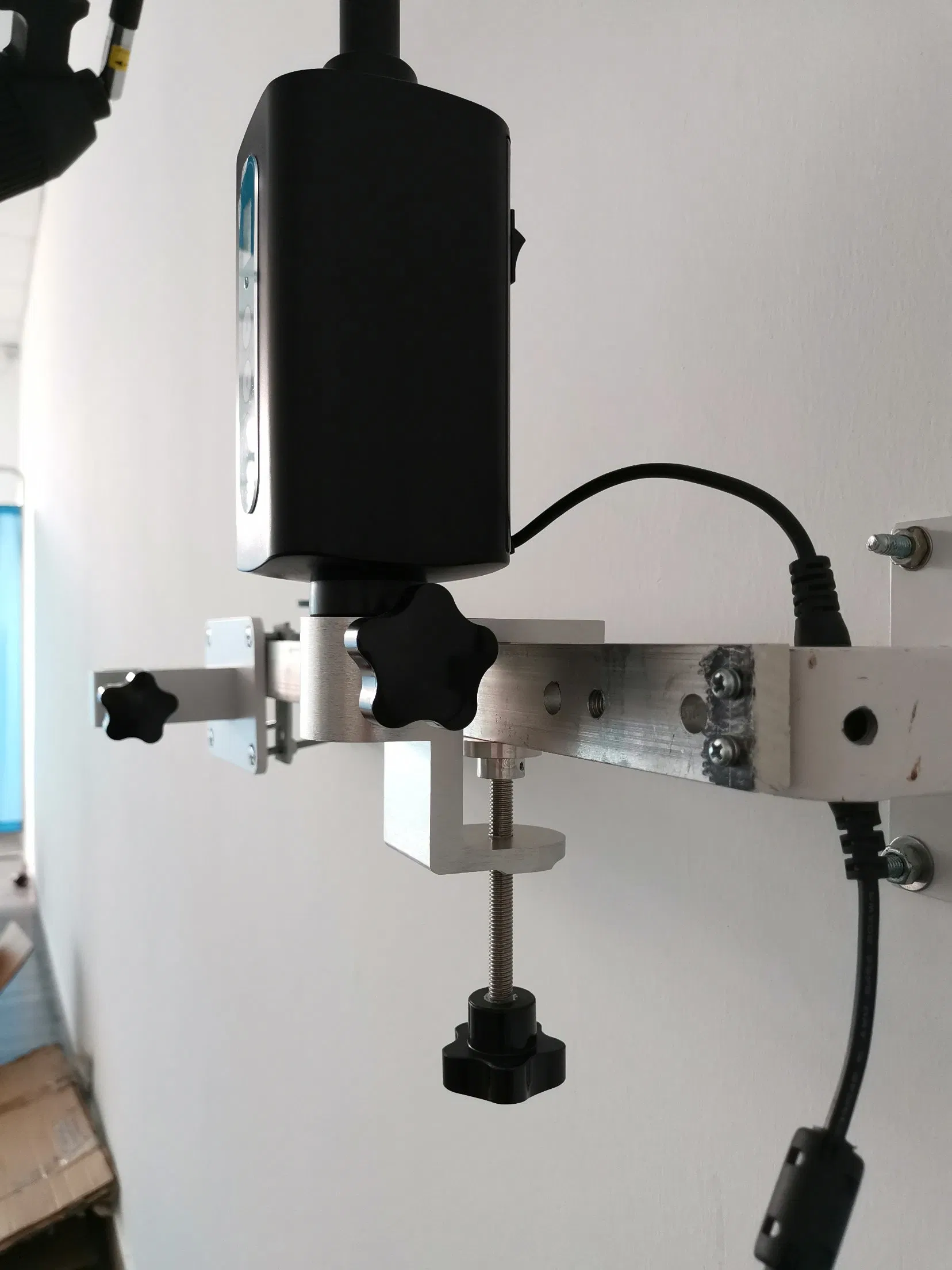

Table Clamp Tc01
Optional Type
Wall Mounted, Rail Clamp, Mobile Stand
Product Description
LED Examination Lamp
Medical Equipment Table Clamp Light KS-Q3D LED Surgical/Examination Light

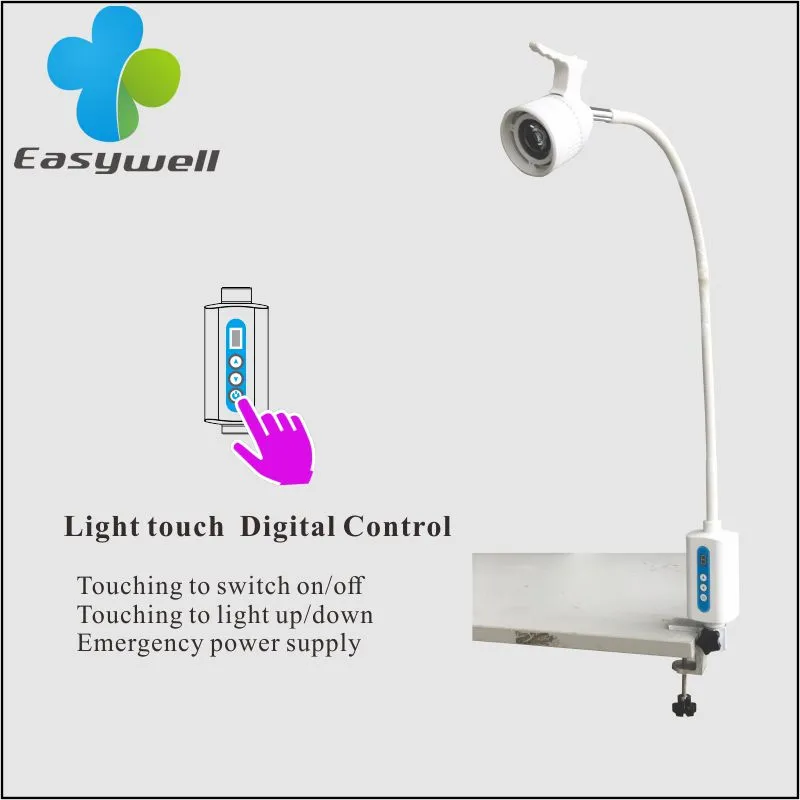

KS-Q3D Detail

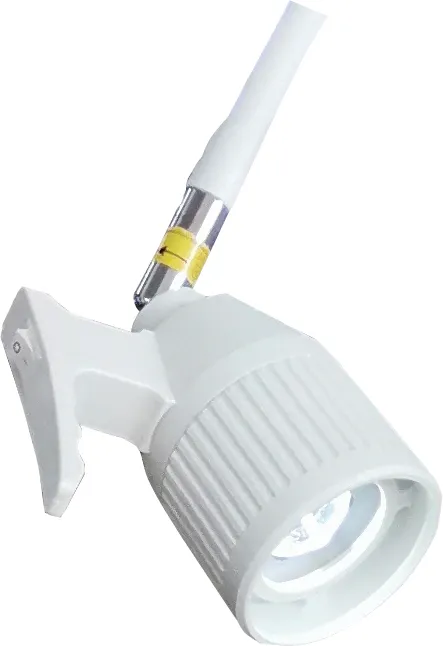

KS-Q3D Positioning
Key Advantages:
  • IR-free technology from LED light source reduces heat sensation for users.
  • Low energy consumption: 1/3 less than conventional Halogen systems.
  • Provides "daylight" illumination for truer tissue color rendition and easier checking.
  • Articulated arm ensures easy movement and positioning without drifting; no dead-angle examination.
  • Ideal for GP practices, E.N.T., small theatre, minor operations, and other surgery use.
Product Parameters
Light Intensity: 89000lx (D=30cm), 37000lx (D=50cm)
Diameter of Lamphead: 75mm
Color Temperature: 6000K
Color Rendering Index (CRI): 75Ra
Brightness Adjustment: KS-Q3D control by light touch on the control box
Light Field Diameter: 4cm at D=50cm
Extension of Arm: 76CM adjustable
Light Source: 1 LED (50,000 hours average life)
Power Consumption: 3W
Input Voltage: 110V-265V 50/60Hz
Detailed Photos & Structure

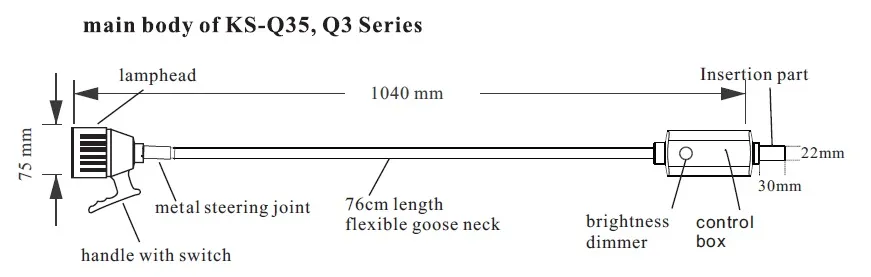

Structure Diagram
Structure Diagram

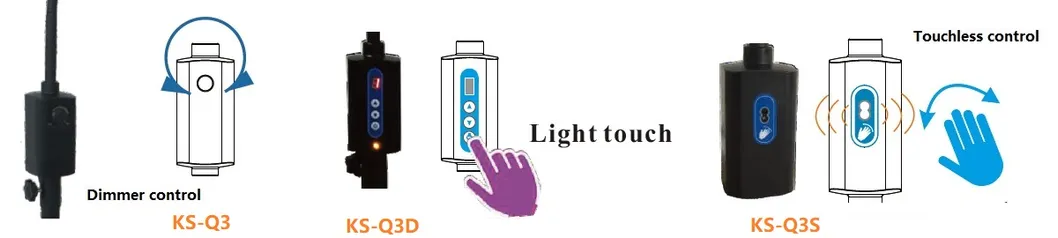

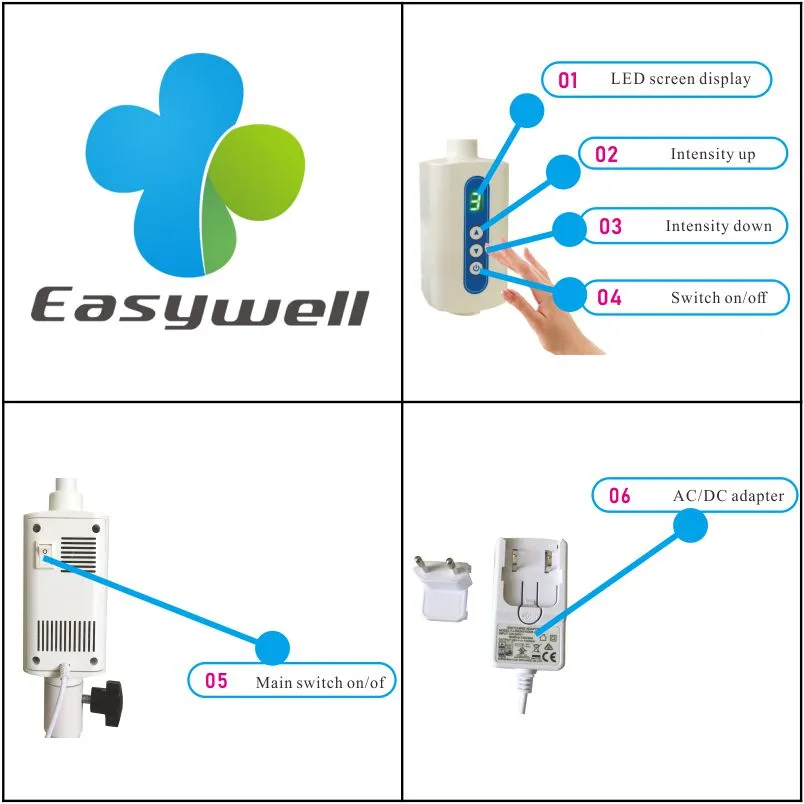

Brightness Control System
Control System
Touch Control

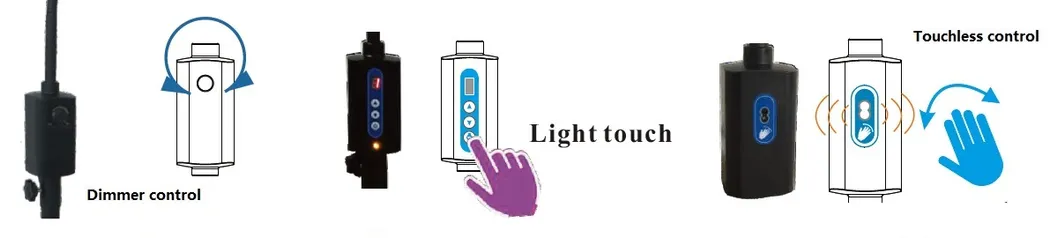

Control Options:
  • KS-Q3: Control by dimmer on the control box
  • KS-Q3S: Control by touchless sensor on the control box
  • KS-Q3D: Control by light touch on the control box
Control Options
Packaging & Shipping

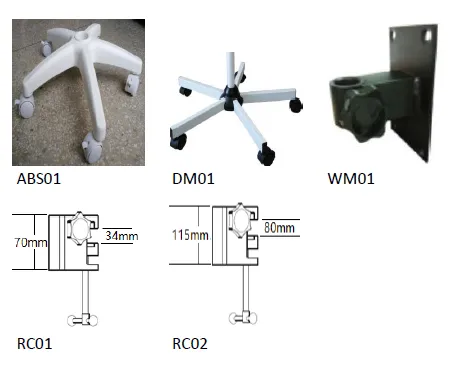

Mounting Types:

Mobile Stand ABS01 & DM01, Wall mounted WM01, Rail mounted clamp RC01/RC02

Mounting Types
Standard Package:

Inner carton: 79*52*14cm / pc
Outer carton: 81*54*55cm / 4pcs
20GP Capacity: 504pcs

Packaging
Shipping
Certificates Certificates
Exhibition Exhibition
Frequently Asked Questions
1. What are the primary applications for the KS-Q3D examination lamp?
The KS-Q3D is ideal for GP practices, E.N.T. clinics, gynecological examinations, small operating theatres, and various minor surgical procedures.
2. How does the LED light source benefit medical examinations?
It uses IR-free technology to reduce heat sensation for both the doctor and patient, and provides 6000K "daylight" illumination for accurate tissue color rendition.
3. What is the expected lifespan of the LED bulb?
The high-quality LED light source has an average lifespan of approximately 50,000 hours, significantly reducing maintenance needs.
4. Can the lamp be mounted in different ways?
Yes, while this model features a table clamp, it is also available in wall-mounted, rail-mounted, and mobile stand configurations to suit different workspace requirements.
5. Is the lamp easy to position during surgery?
Absolutely. It features a 76cm articulated adjustable arm that allows for precise positioning without drifting, ensuring no dead-angle during examinations.
6. What is the power consumption of this medical lamp?
The lamp is highly energy-efficient, consuming only 3W of power, which is about 1/3 less than traditional halogen systems.
