Product Description

ℹ️ Basic Product Information
Model NO.T1008S-4525SE
Wire4 Wires 3 Wires 2 Wires 6 Wires Mono
CertificationCE, RoHS
Input Voltage220V
LED Chips BrandCr-Ee / Os-ram
Luminous Flux300-350lm
CRI>97ra
Beam Angle15-25° / 20-36° (Shapeable & Zoomable)
Housing ColorBlack / White
Production Capacity10000PCS Per Month
📋 Specifications

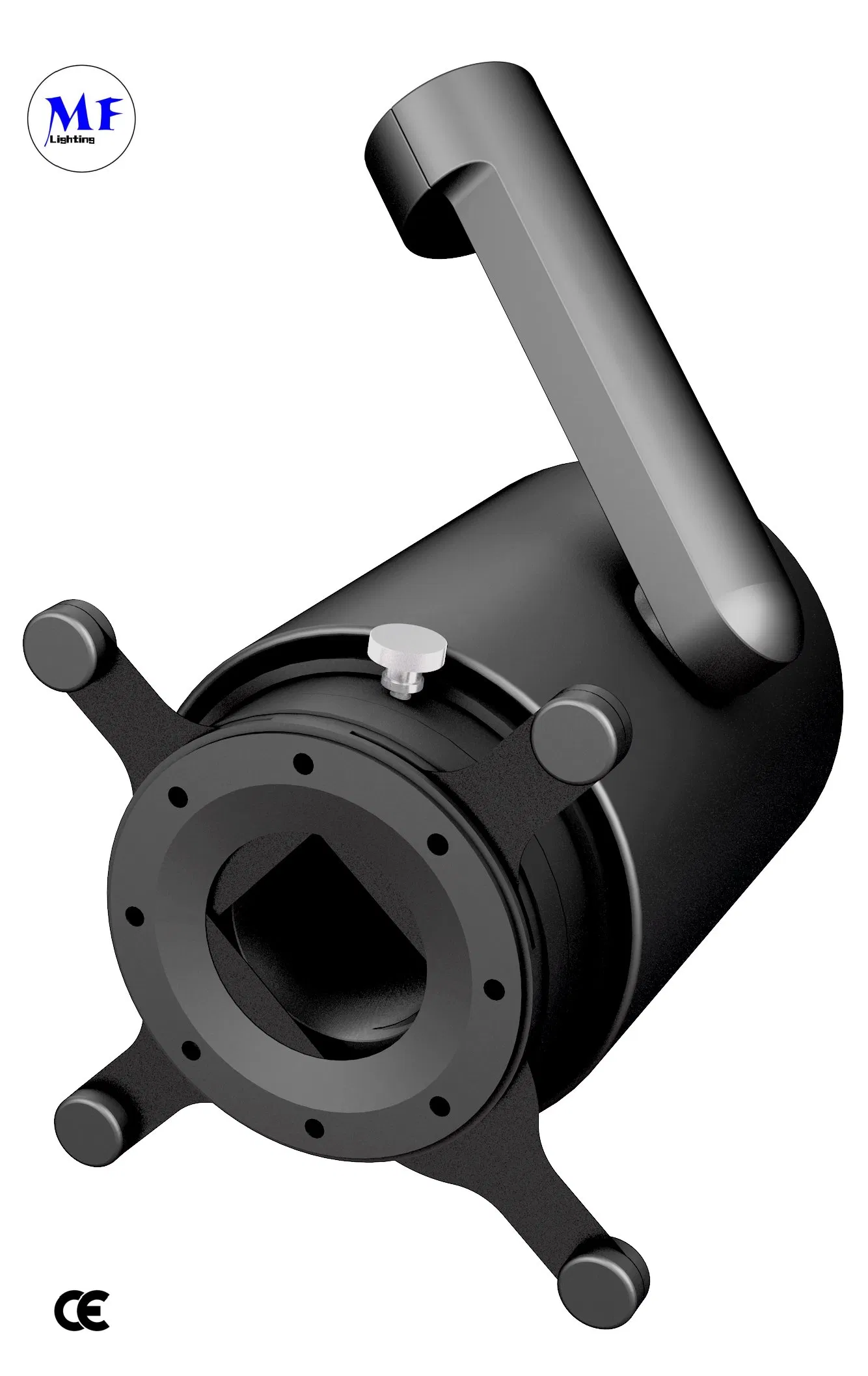

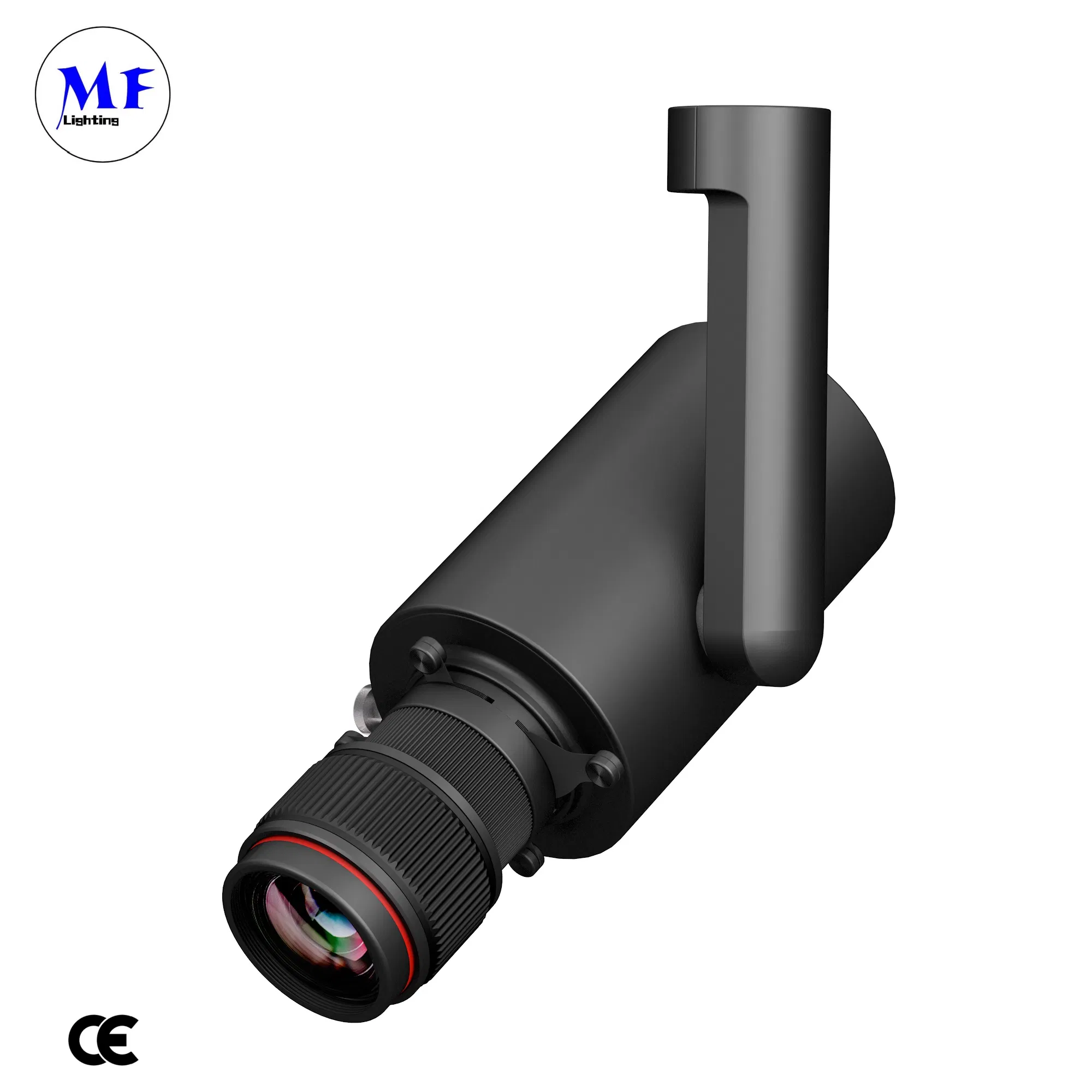

Factory Price Optical-Grade Variable Aperture Dimmable Shapeable Projection Track Light
Parameter Detail
Product NameT1008S
Item TypeShapeable Track Light / LED Spot Light
Wattage10W
Input Voltage220-240V
Working Time50,000 Hours
Warranty5 Years
InstallationTrack-Mounted, Wall-Mounted
🔍 Product Overview
GZ series shapeable track light features a compact design, with a dry mechanical damping system. It achieves stable and reliable front and rear zoom, spot shaping, and projection. Very suitable for modern commercial lighting designs and no-main-lamp concepts.

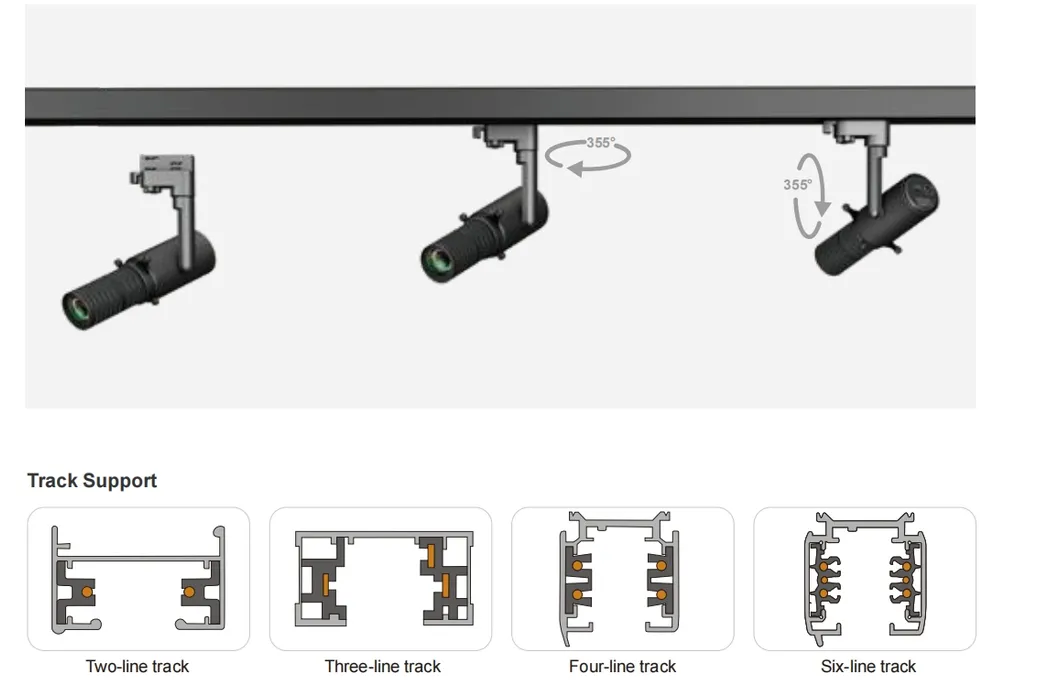

Projection Track Light
Shapeable Track Light

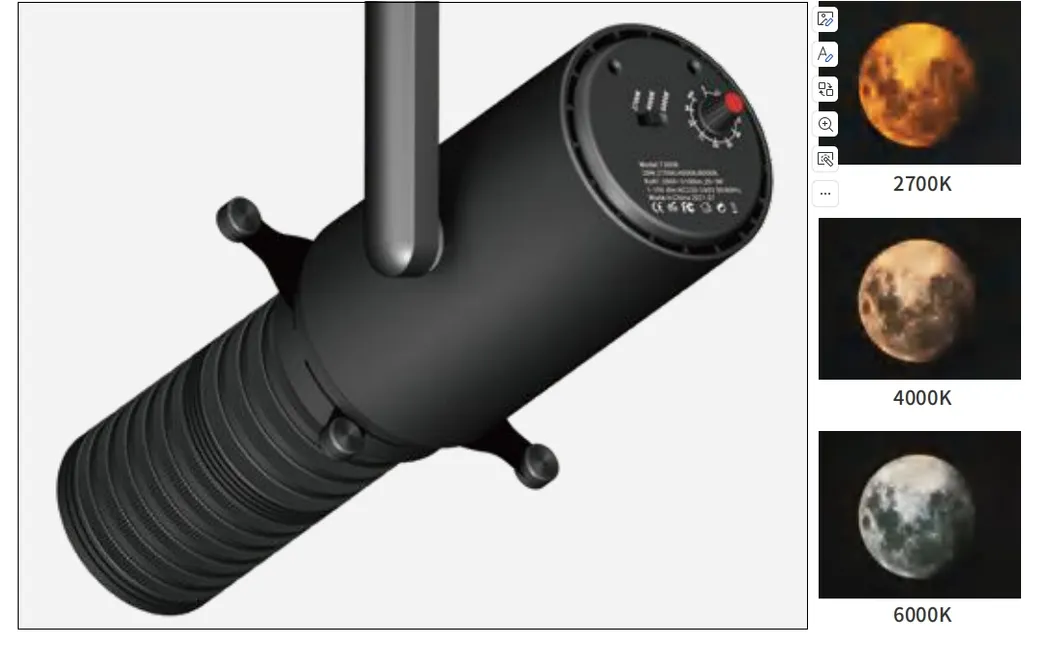

DIP color temperature coupled with the single lamp knob dimming design allows for easy single lamp dimming, spot shaping, and color temperature adjustment.
Dimming Design

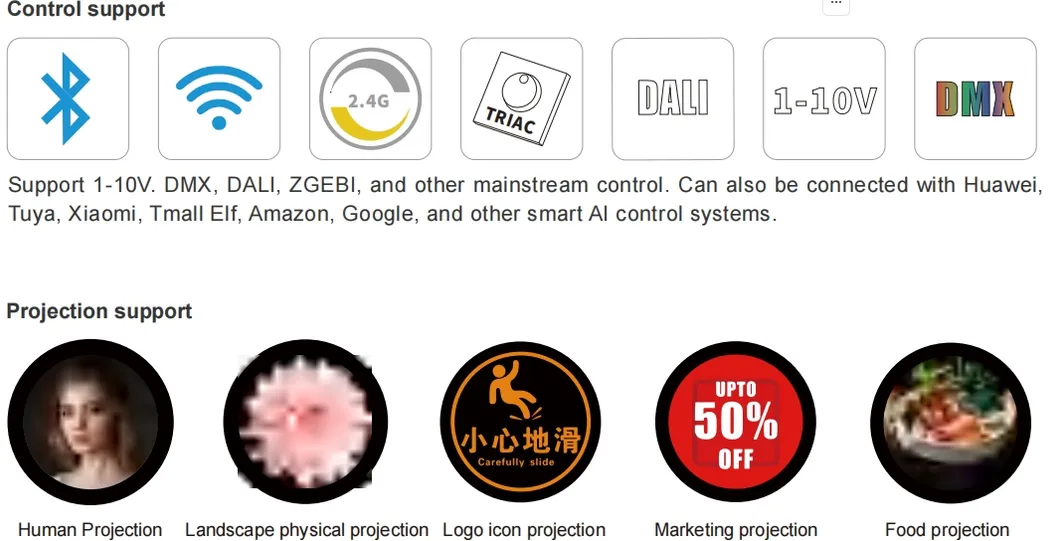

Adjustment Features
🖼️ Professional Optical Filters

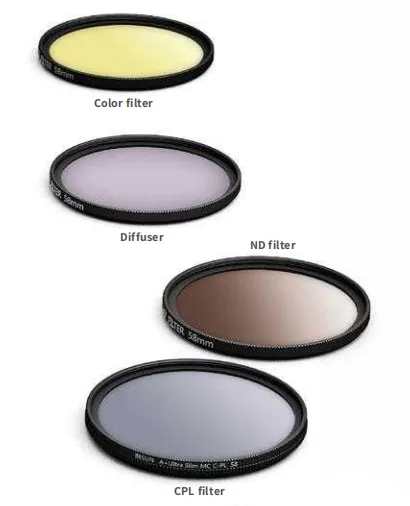

Color filter
CPL Filter
Color filter: Adjust the luminous color of the lamp based on specific needs.
ND filter: Reduces small-angle illumination to less than 75LUX for authentic lighting.

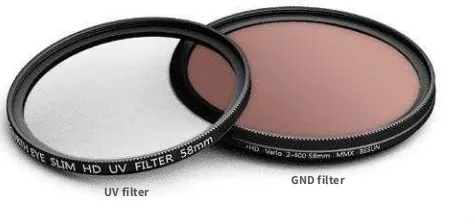

UV filter: Filters UV rays to protect illuminated objects like silk and cultural relics.
CPL filter: Eliminates surface reflections to display original appearance in high luminosity.
GND filter: Alters light ratio for even and constant illumination of oblique positions.
Key Features

Cold Forging Radiator

Made of 1070# pure aluminum. High thermal conductivity (226W/m.K), low-temperature differences, and long service life.

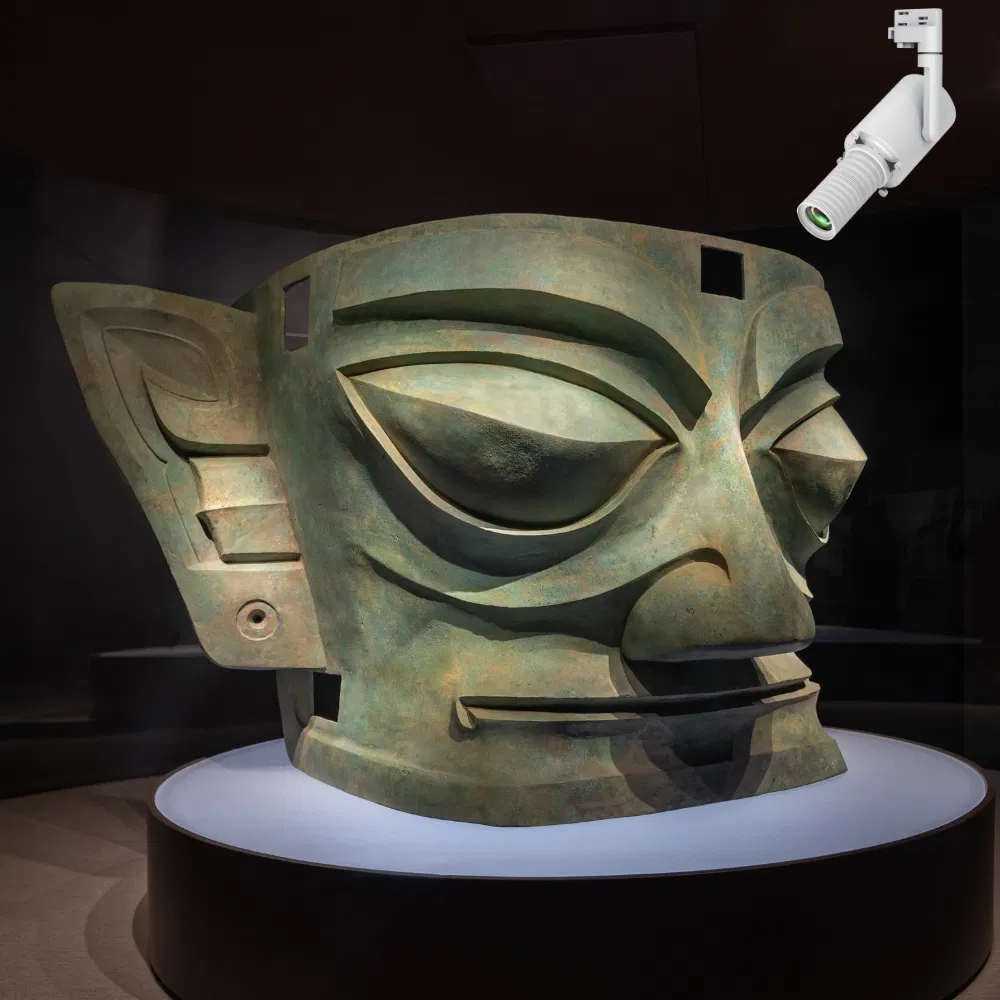

Radiator Design

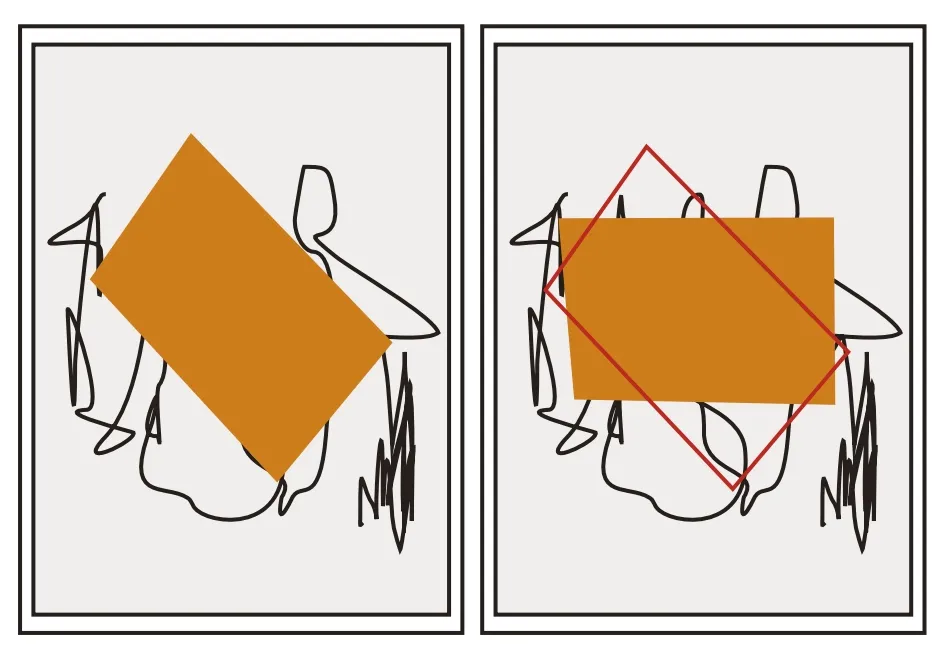

360° Manual Rotation

Loosen the manual screw to rotate the lens for perfect spot orientation.

Rotation Feature

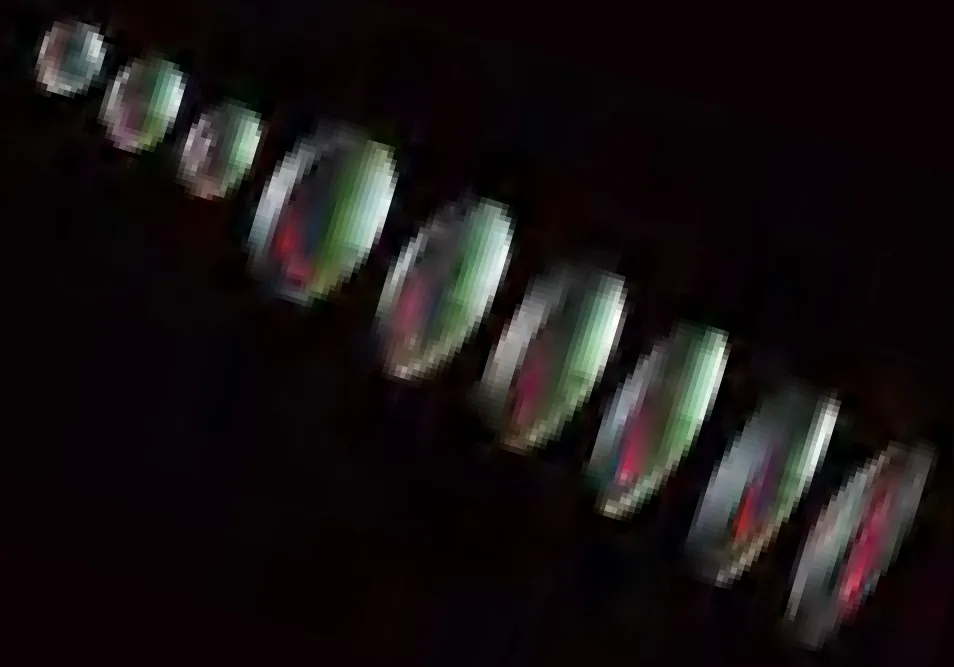

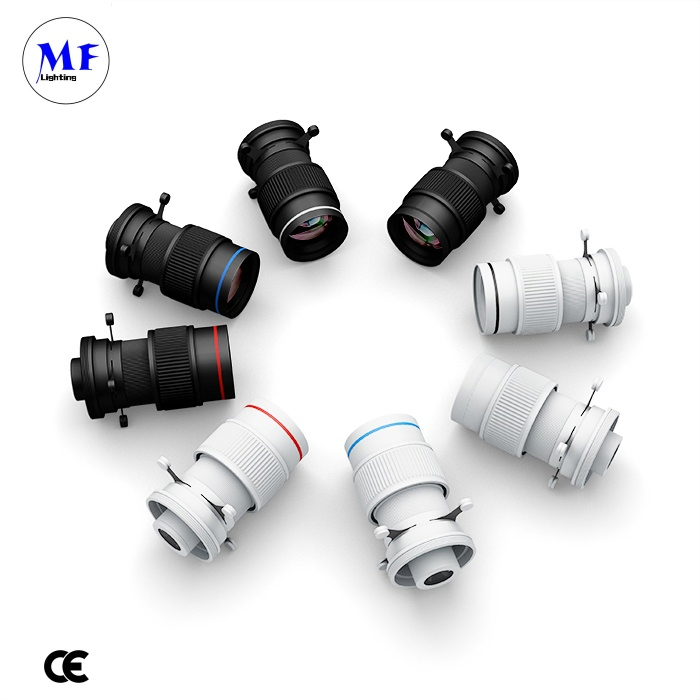

HD Optical Lens

Multiple coated lenses ensuring high luminous efficiency, spot uniformity, and minor distortion.

Optical Lens
🏬 Applications
  • Luxury Retail: 20° narrow beam for jewelry/watches, CPL filters eliminate glare.
  • Museums/Galleries: UV filters protect paintings; CRI≥97 for accurate color.
  • Fine Dining: Shapeable spots for logos or food close-ups.
  • Stages/Theaters: Silent operation with instant beam adjustment.
  • Medical Labs: Flicker-free and UV-free for precision environments.

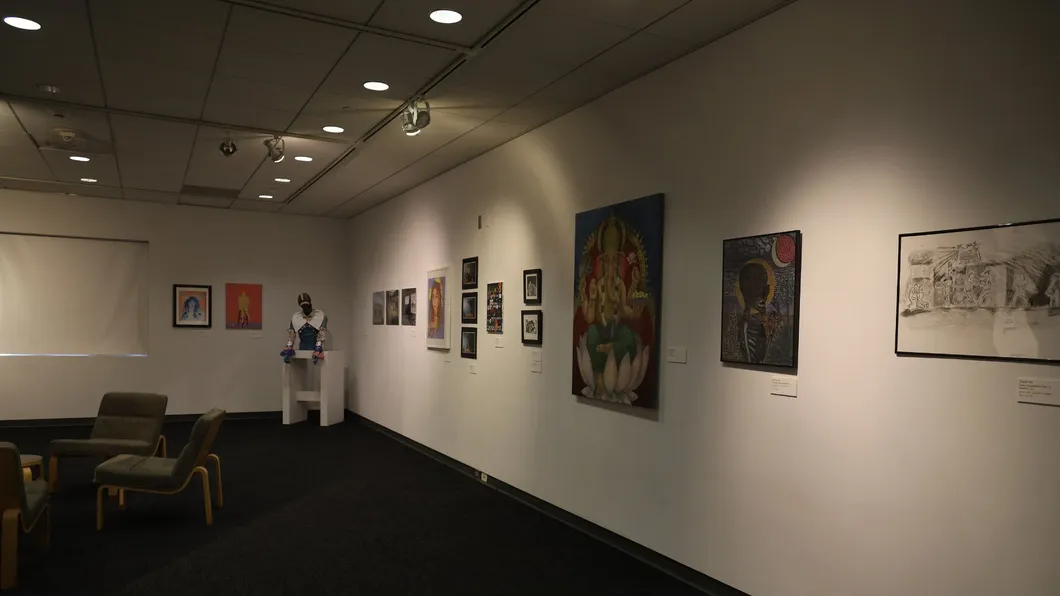

Application Scenario
🛠️ Installation Instructions

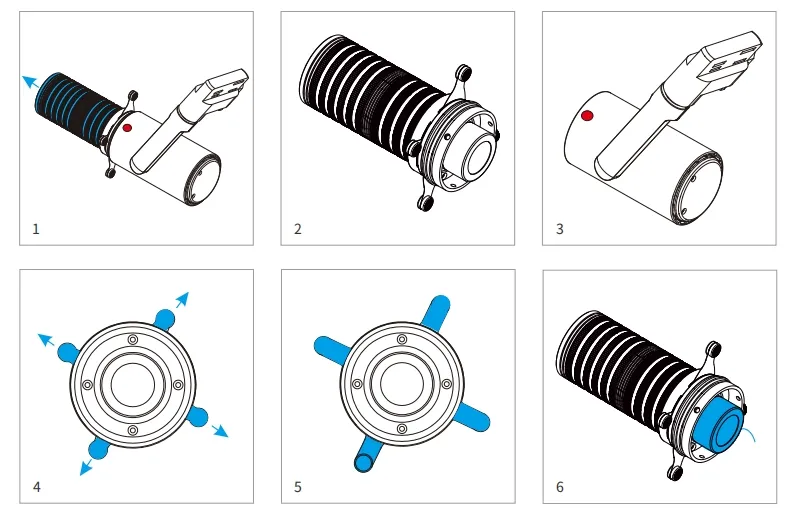

1. Loosen hand screw and separate lens part from the lamp body.
2. Stretch the four diaphragm sheets outward to maximum extent.
3. Install the gobo device as provided by the manufacturer.
4. Adjust aperture and sharpness until satisfactory.
Installation 1

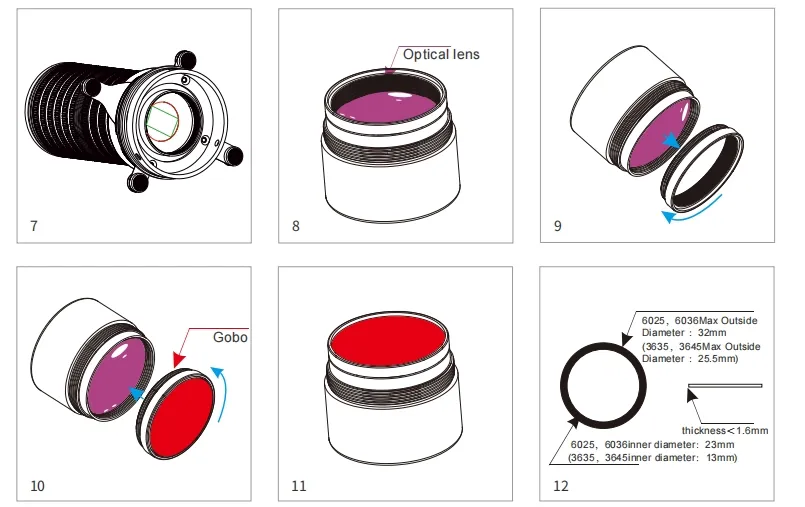

Installation 2

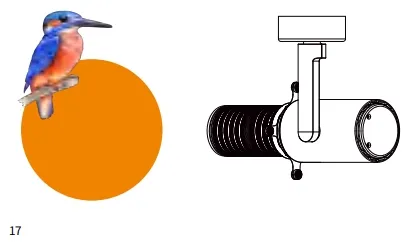

Aperture Adjustment

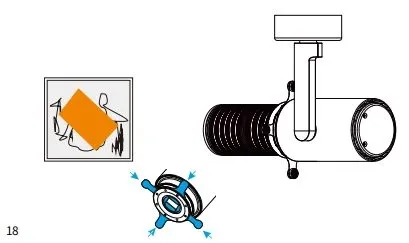

Spot Sharpness

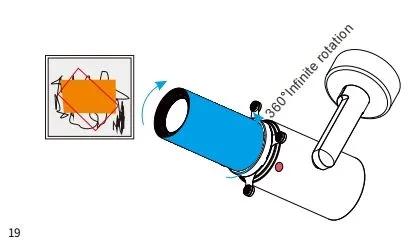

Logo Direction
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a 100% factory facility specializing in high-quality LED lighting solutions.
What is the lead time for mass production?
Typically 3-7 days for sample orders and 15-25 days for mass production based on the order quantity.
Can I request a sample for quality testing?
Yes, sample orders are welcomed to test and check the performance. Mixed samples are also acceptable.
How are the products shipped?
We ship via sea, air, or express services (DHL, UPS, Fedex, TNT) depending on your preference.
Can the light spot shape be customized?
Yes, the light features an optical-grade variable aperture and diaphragm sheets that allow you to shape the spot into circles, squares, or logos.
What is the advantage of the 1070# aluminum radiator?
The cold forging process creates a radiator with high thermal conductivity, ensuring low light failure and a long service life of up to 50,000 hours.
